Machinery

The CES Lineup

Tracked Aerial/Spider Lifts from Platform Basket and Omme — engineered for tight access, exterior maintenance, indoor spaces, utility, and other applications with a working height up to 177 feet.

Platform Basket

13.80

Spider Lift

Working Height: 44 ft
Outreach: 25 ft 7 in
Basket Capacity: 440 lbs
Width (narrow / wide): 30 in / 39 in
Operating Weight: 3,638 lbs

Fits through a standard 36" doorway

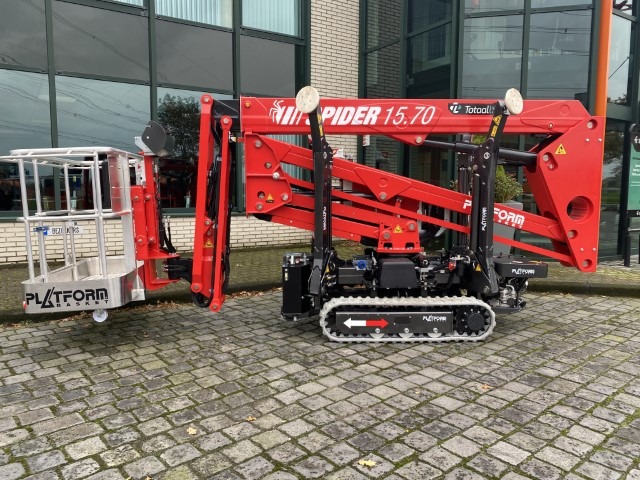

Platform Basket

15.70

Spider Lift

Working Height: 47 ft
Outreach: 21 ft 3 in
Basket Capacity: 507 lbs
Width (narrow / wide): 30 in / 39 in
Operating Weight: 4,694 lbs

Hybrid power option available

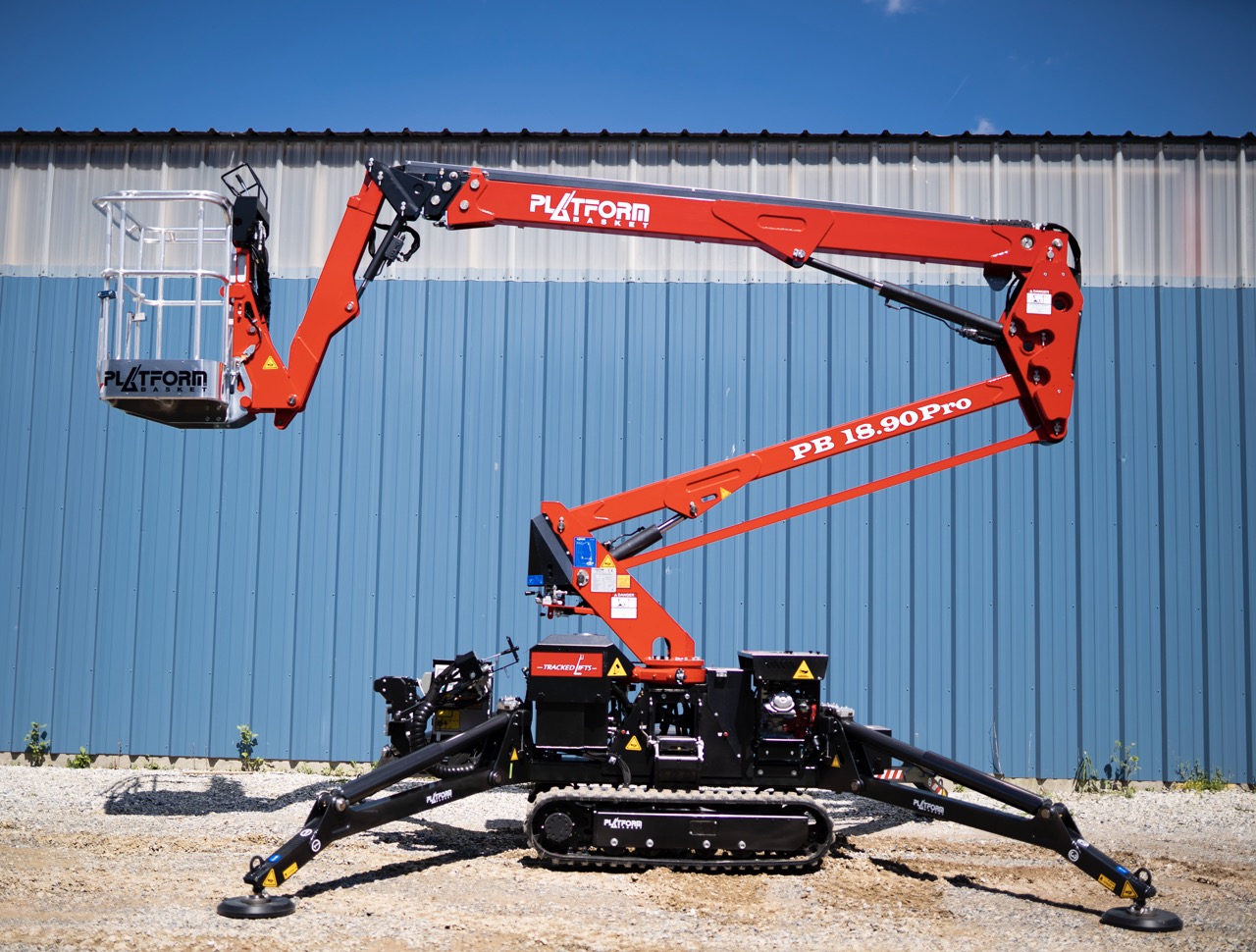

Platform Basket

18.90

Spider Lift

Working Height: 60 ft
Outreach: 30 ft 10 in
Basket Capacity: 440 lbs
Width (narrow / wide): 31 in / 42 in
Operating Weight: 5,577 lbs

Available in diesel, gasoline, and hybrid

Platform Basket

18.95

Spider Lift

Working Height: 60 ft
Outreach: 31 ft 5 in
Basket Capacity: 507 lbs
Width (narrow / wide): 31 in / 42 in
Operating Weight: 5,600 lbs

Platform Basket

20.95

Spider Lift

Working Height: 64 ft
Outreach: 31 ft 2 in
Basket Capacity: 551 lbs
Width (narrow / wide): 31 in / 42 in
Operating Weight: 6,283 lbs

Platform Basket

22.10

Spider Lift

Working Height: 72 ft
Outreach: 34 ft (unrestricted)
Basket Capacity: 300 lbs
Width (narrow / wide): 35 in / 44 in
Operating Weight: 6,900 lbs

Platform Basket

22.10 EVO

Spider Lift

Working Height: 72 ft
Outreach: 34 ft (unrestricted)
Basket Capacity: 300 lbs
Width (narrow / wide): 35 in / 44 in
Operating Weight: 7,187 lbs

Tracked Lifts

22.10 46kV

Spider Lift

Working Height: 72 ft
Outreach: 32 ft 10 in (unrestricted)
Basket Capacity: 300 lbs
Width (narrow / wide): 35 in / 44 in
Operating Weight: 8,642 lbs

Category C 46 kV insulated for utility work

Platform Basket

27.14

Spider Lift

Working Height: 89 ft
Outreach: 50 ft
Basket Capacity: 300 lbs
Width (narrow / wide): 35 in / 51 in
Operating Weight: 11,500 lbs

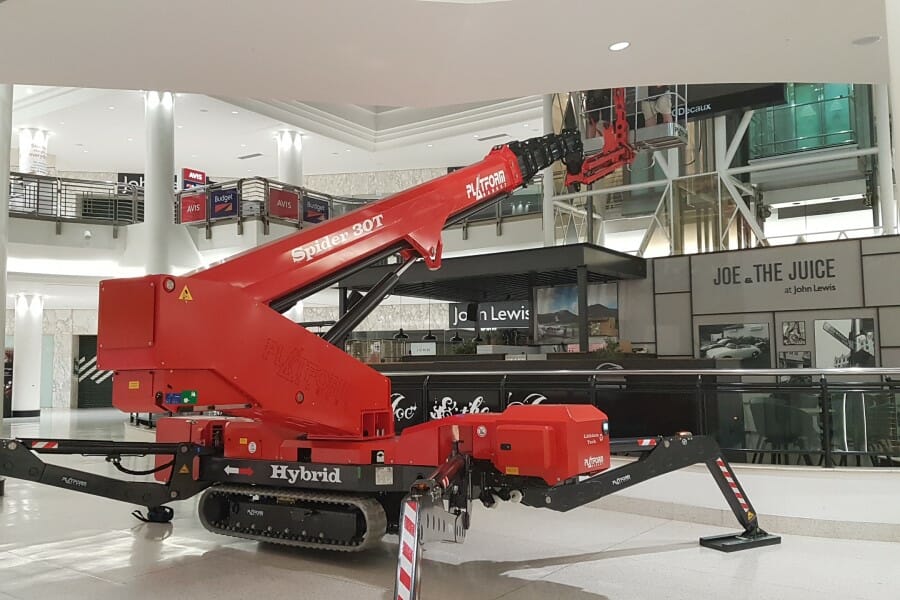

Platform Basket

30T

Spider Lift

Working Height: 100 ft
Outreach: 44 ft 7 in
Basket Capacity: 507 lbs
Width (narrow / wide): 35 in
Operating Weight: 10,450 lbs

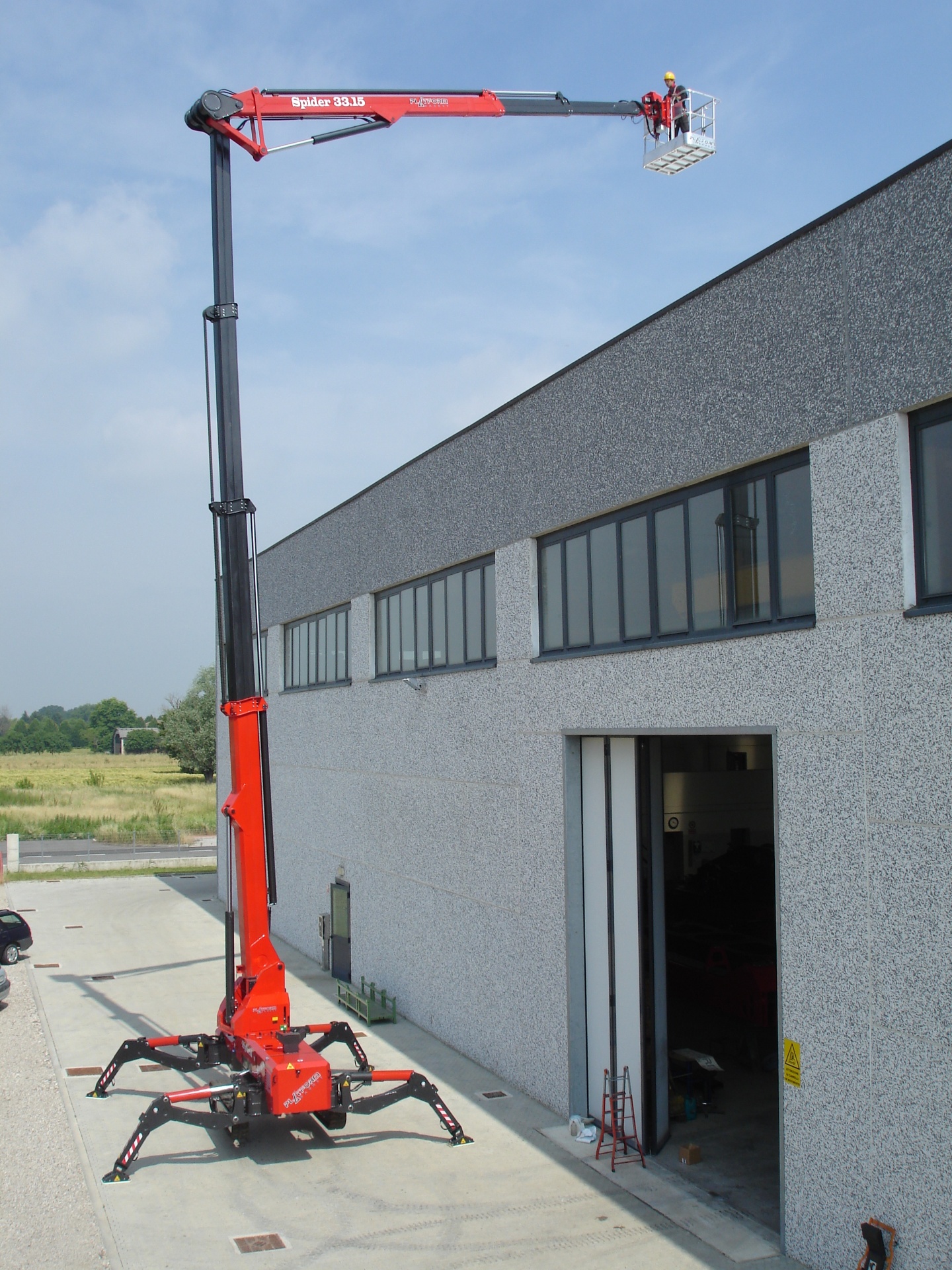

Platform Basket

33.15

Spider Lift

Working Height: 107 ft
Outreach: 50 ft
Basket Capacity: 661 lbs
Width (narrow / wide): 55 in / 66 in
Operating Weight: 15,334 lbs

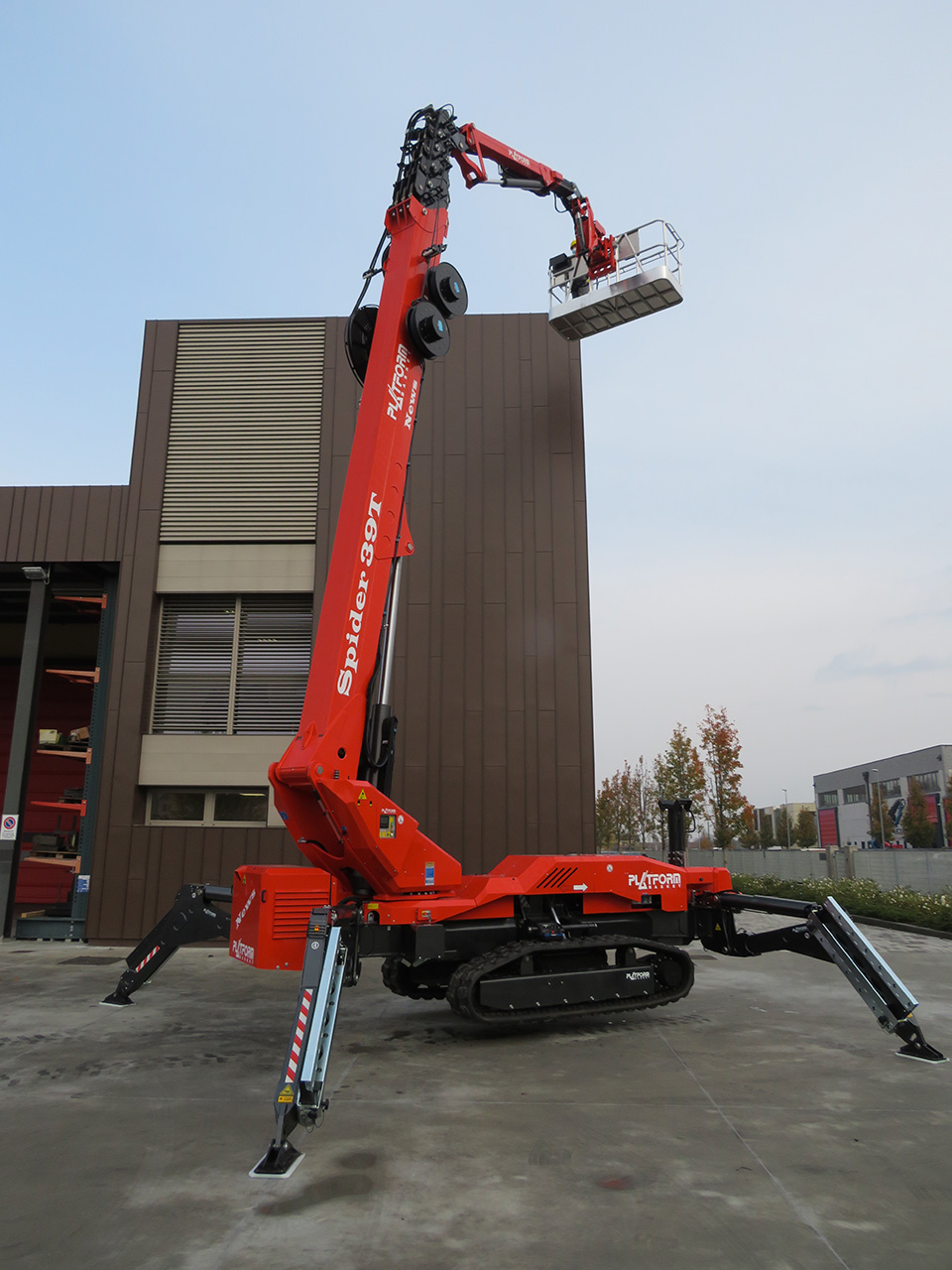

Platform Basket

39T

Spider Lift

Working Height: 127 ft
Outreach: 54 ft 9 in
Basket Capacity: 727 lbs
Width (narrow / wide): 54 in (4 ft 6 in)
Operating Weight: 26,235 lbs

Heavy-duty tracked telescopic boom

Platform Basket

43T

Spider Lift

Working Height: 142 ft
Outreach: 58 ft 10 in
Basket Capacity: 727 lbs
Width (narrow / wide): 54 in (4 ft 6 in)
Operating Weight: 27,712 lbs

3-man basket, 360° non-continuous turret

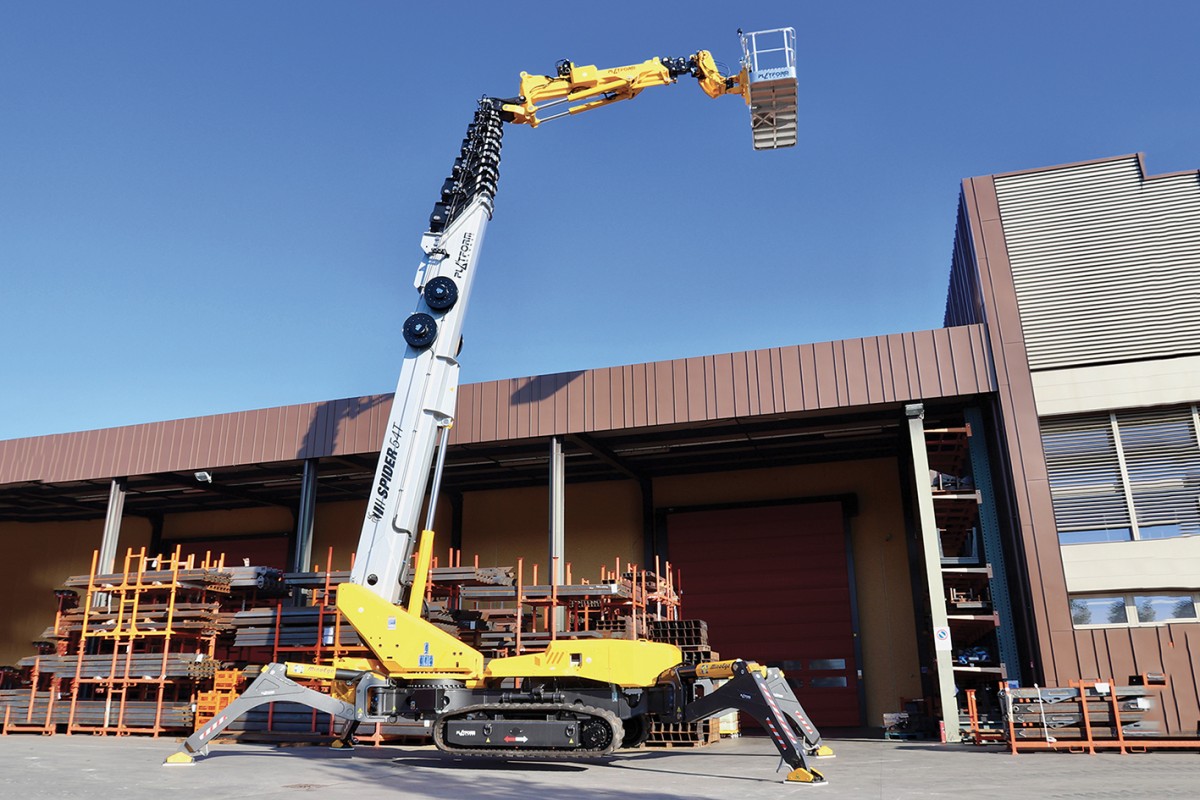

Platform Basket

54T

Spider Lift

Working Height: 178 ft
Outreach: 68 ft 11 in
Basket Capacity: 882 lbs
Width (narrow / wide): 5 ft 9 in / 29 ft 7 in spread
Operating Weight: 50,706 lbs

Kubota Diesel, 71 HP — largest in lineup

Specifications sourced from the May 2025 Tracked Lifts / Platform Basket / Omme product brochure. Data is indicative and not binding — contact CES for the latest spec sheets, configuration options, and lead times.

Need help spec'ing a unit?

Tell us the job and we'll match the right machine — and structure financing and transport to get it on site.

Request a Quote
